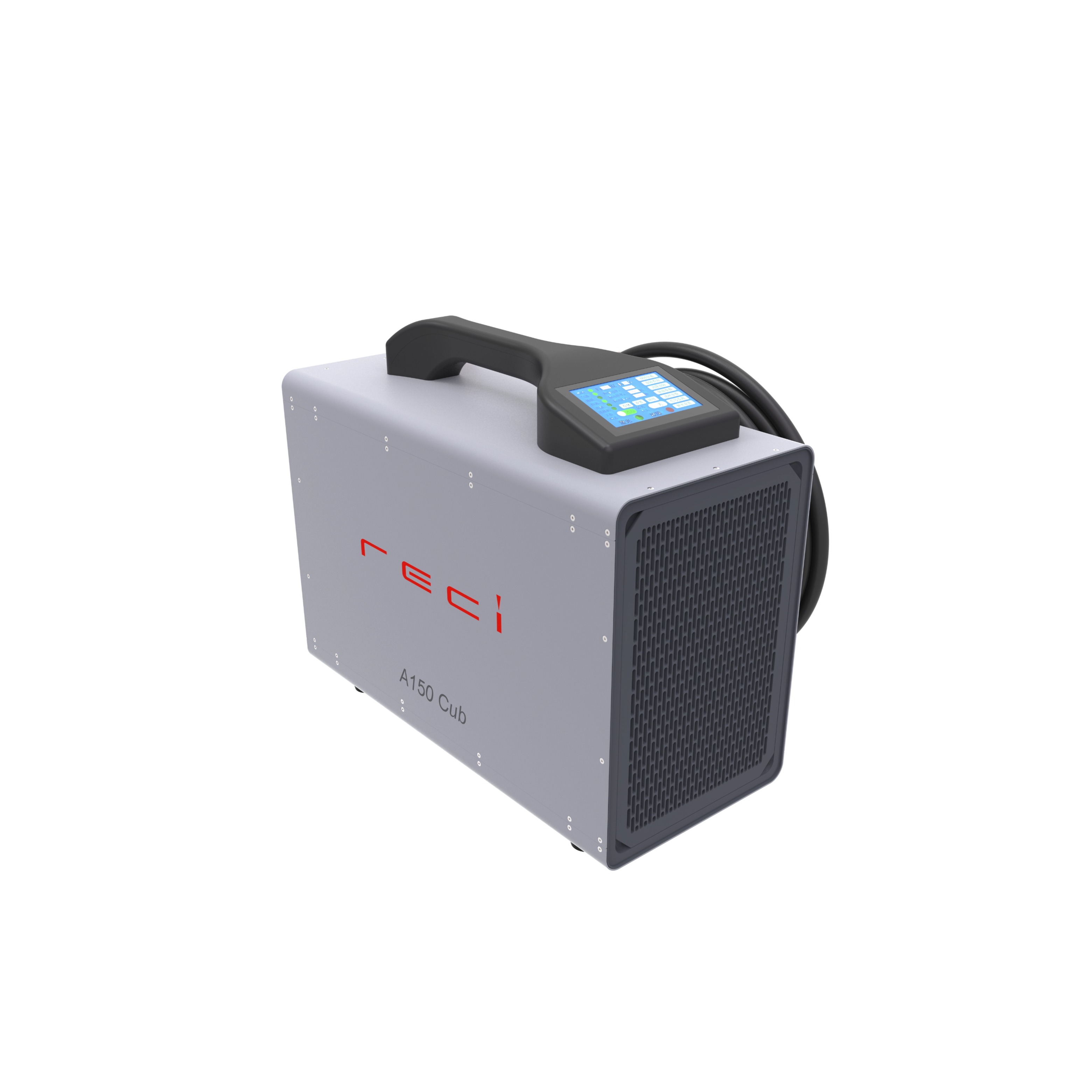

Air-cooled handheld welder

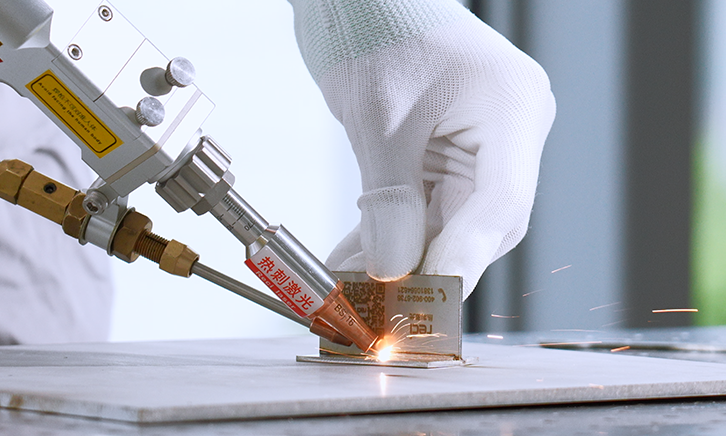

Reci A series Air-cooled handheld welder are independently developed and produced by Reci Laser. Compared with traditional gas and solid-state lasers, this series of products has higher electro-optical conversion efficiency and superior beam quality. At the same time, fiber lasers are more compact due to the coilability of fiber. A series products have the advantages of high photoelectric conversion efficiency, high output power, superior beam quality, compact structure, maintenance-free and low cost. They are widely used in industrial processing such as metal welding, military and national defense, scientific research and other fields.

产品参数

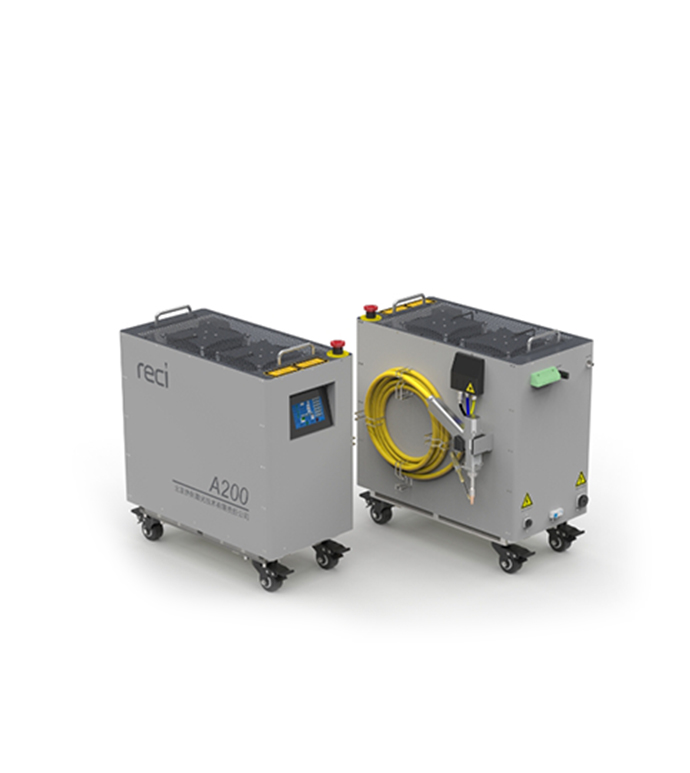

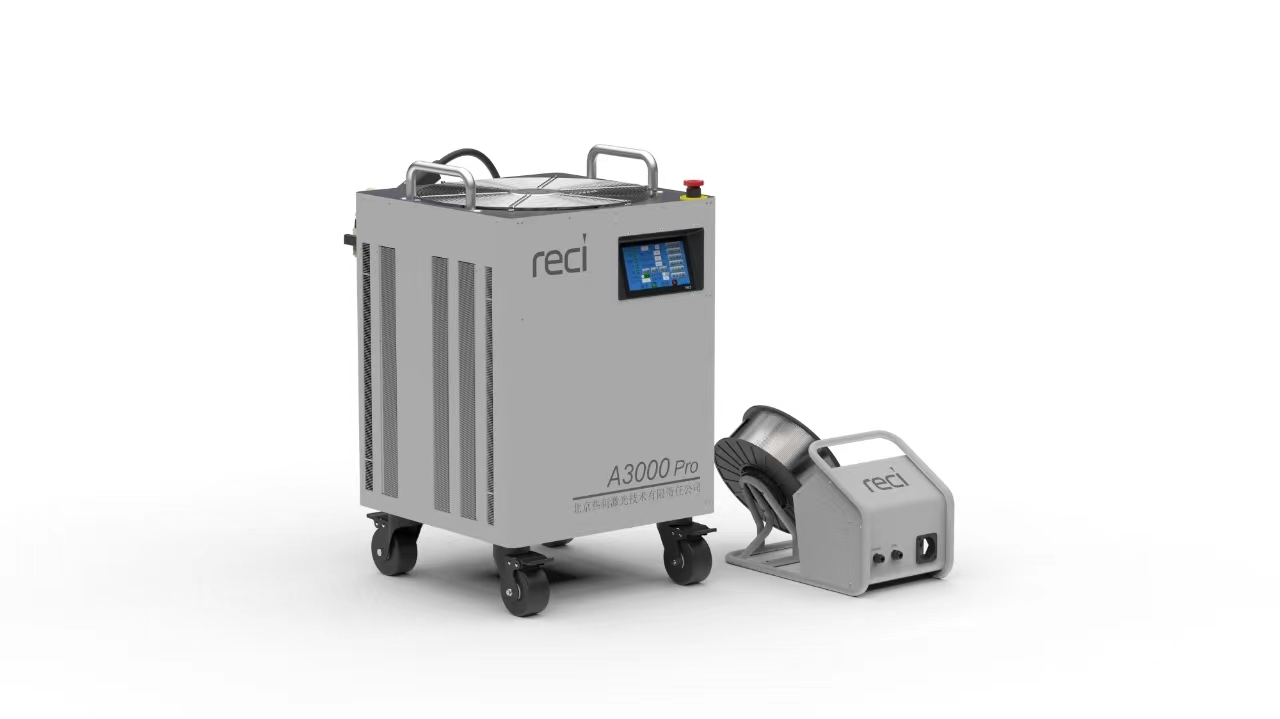

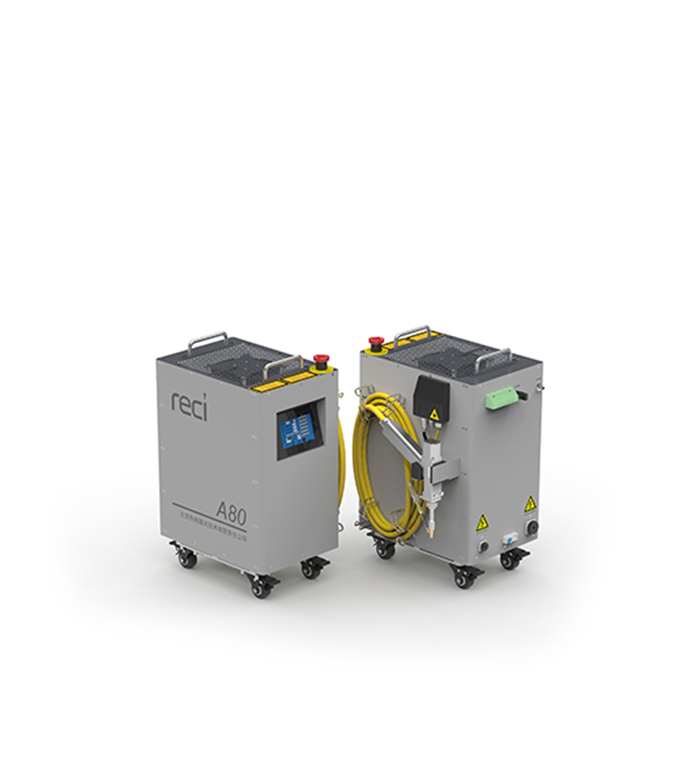

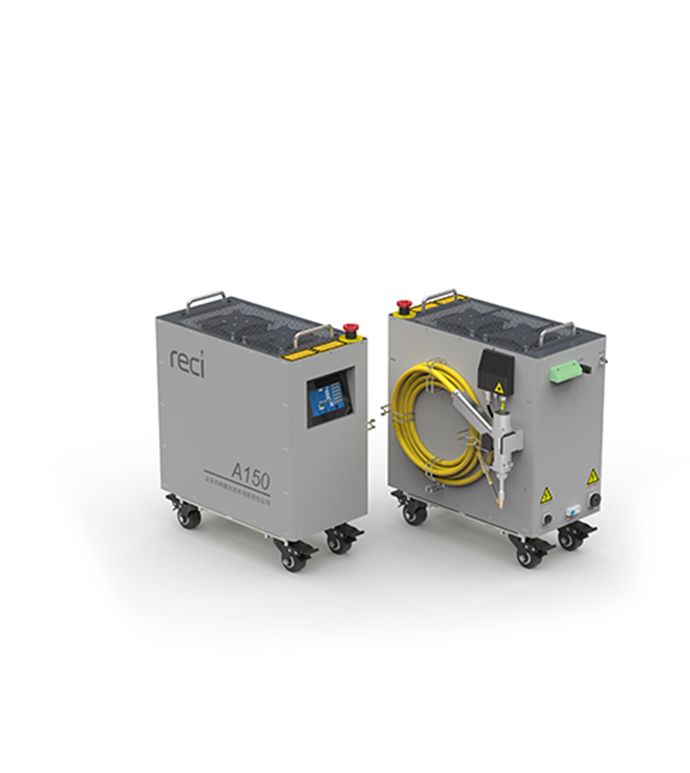

Model		A80	A120	A150	A200	A3000
Optical Specifications	Limit Power	700W	1000W	1300W	1800W	3000W
	Maximum Power	800W	1200W	1500W	2000W	3200W
	Operating Mode	Continuous Welding & Spot Welding
	Polarization Direction	Random
	Output Power Adjustment Range	10～100%
	Central Wavelength	1080 ± 3nm
	Power attenuation after 1 hour of continuous operation	<2%
	Maximum Modulation Freguency	5Khz
	Indicating Red Light Power	≥0.2mW
	Output Fiber Core Diameter	20 μm
	Output Armored Cable Length	Default 5m
electrical Specifications	Operating Voltage	AC 220V, Single Phase, 50/60Hz				AC 380V, Three-phase, 50/60Hz
	Maximum Power Consumption（W）	< 2100W	< 3100W	< 4100W	< 6000W	< 9000W
	Control Method	Touch Screen
Other Specifications	Dimension（W x H x D）mm	273 x 614.9 x 396.3	273 x 634.9 x 527.7	273 x 634.1 x 527.7	323 x 684.2 x 629	373 x 877.2 x 758
	Weight	34kg	41kg	43kg	58kg	90kg
	Operating Temperature	-20~40℃			-30～40℃
	Operating humidity	< 90%

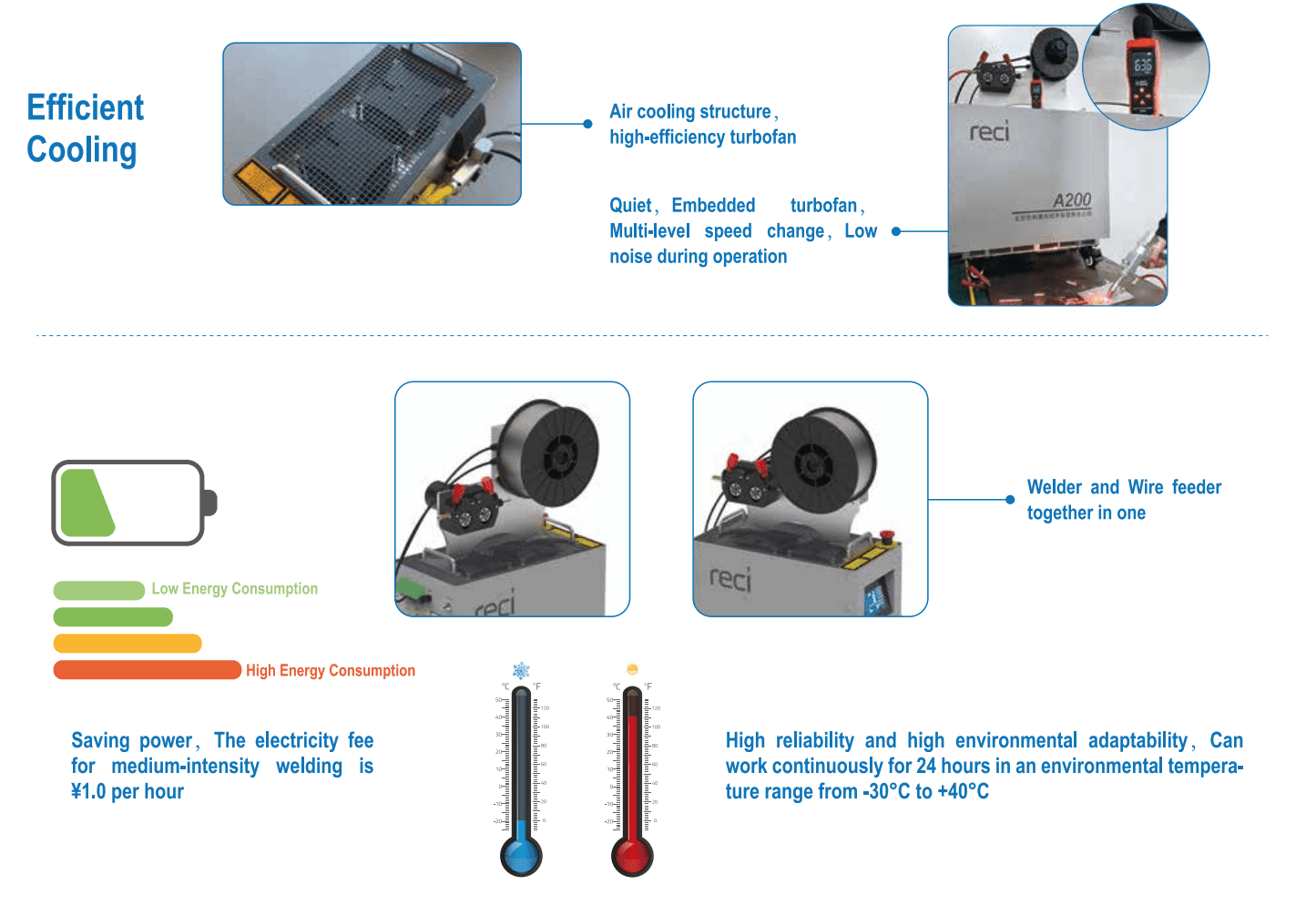

	Cooling	Air
	Storage Temperature	-20～60℃			-10～60℃
	Input Gas Pressure	≤ 0.7MPa
Accessories	Welding Gun	Default
	Wire Feeder	Default
