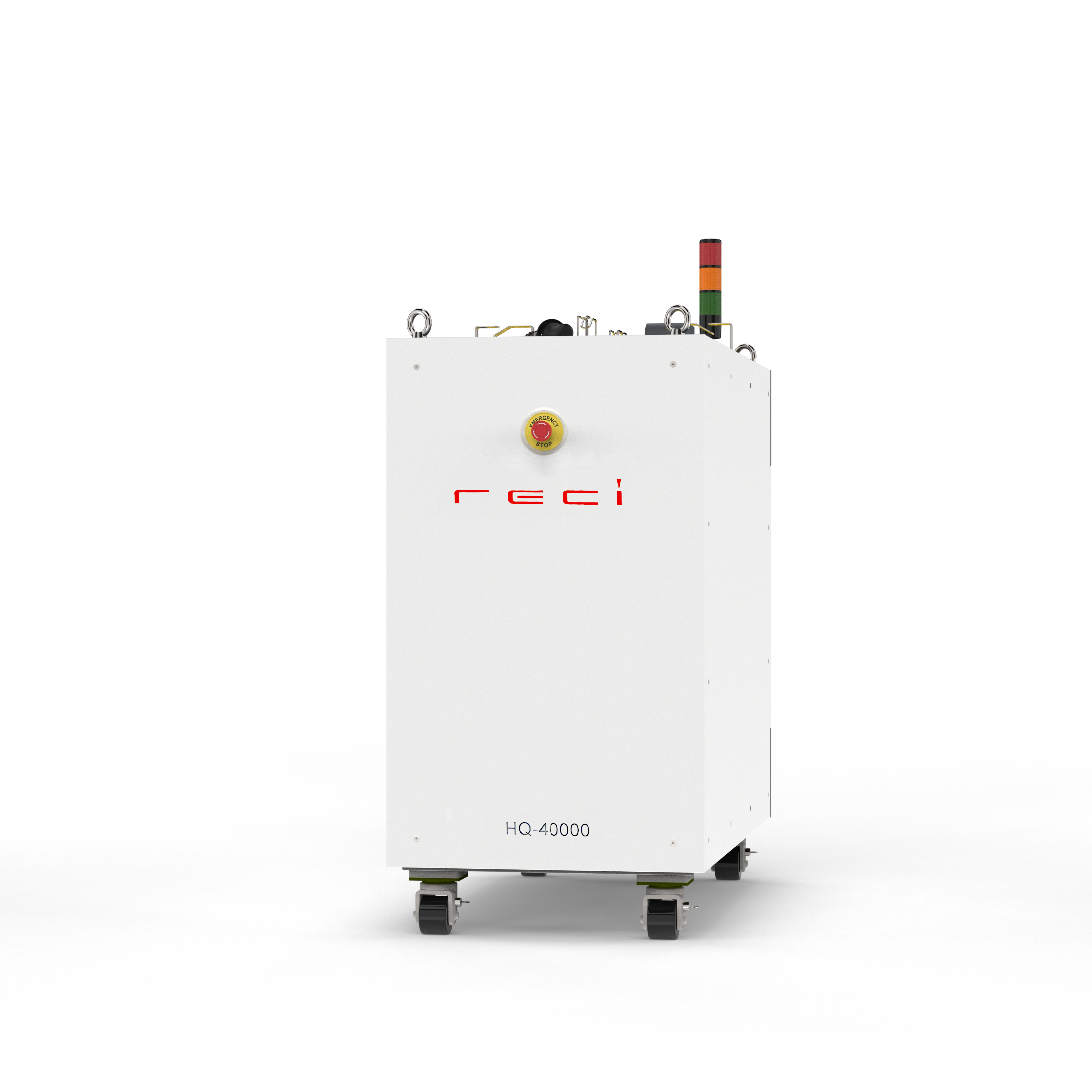

Model | HQ 20000 | HQ 30000 | HQ 40000 |
Output Power（W） | ≥ 20000 | ≥ 30000 | ≥ 40000 |
Central Wavelength（nm） | 1080 ± 5 | ||
Operating Mode | CW/Modulate | ||
Max Modulation Frequency（kHz） | 20 | ||
Power Instability | < 3% | ||
Red Laser power（mW） | > 0.5 | ||
Beam Delivery Optics | Q+ / LOE | ||
Output Fiber Diameter（μm） | 100（customizable） | ||
Beam Quality BPP（mm*mrad） | < 4 | ||
Delivery Fiber Length（m) | 30（customizable） | ||
Operating Voltage（VAC） | 380V ± 10%、50/60Hz | ||
Max Power Consumption（KW） | < 60 | < 90 | |
Control Model | Ext. RS232/Ext. AD | ||
Power Range（%） | 10～100 | ||
Ambient Temperature（℃） | 5～40 | ||
Ambient Humidity（%） | < 70 | ||
QBH Cooling Water Temperature（℃） | Room temperature | ||
Cooling Temperature（℃） | 25 ± 2 | ||
Cooling Flow（L/min） | ≥ 160 | ≥ 230 | |
Size W x H x D（mm3） | 628 x 812 x 1439 | 628 x 1044 x 1439 | |
Weight（kg） | <420 | <600 | |
Tel：138 1045 8641
E-mail：lishuming@recilaser.com
WeChat：138 1045 8641
Tel：13811421864
E-mail：pengbo@recilaser.com
WeChat：13811421864
Tel：13811183410
E-mail：wujuncheng@recilaser.com
WeChat：13811183410
Tel：15110159176
E-mail：wangaolan@recilaser.com
WeChat：15110159176
1）The laser module has high brightness, and the laser brightness after combining is leading in the country;
2）The light spot energy distribution is diverse and adaptable to various complex precision processing scenarios;
3）Higher average power, faster cutting speed and better processing quality for thick plates;
4）The nonlinear effect suppression ratio is high, the available armored cable is longer, and it is suitable for large-format processing;
5）Structurally, it uses high-power laser modules, reducing the number of modules and highly integrating the product, which greatly saves space and logistics costs;
6）The cabinet design can adapt to more complex environments, such as high temperature, high humidity, and complex electromagnetic environments.
